Galvanized Galvalume Steel Coilsheet

Standard	AISI,ASTM,GB,JIS	Material	SGCC,S350GD+Z,S550GD+Z,DX51D,DX52D,DX53D
Thickness	0.16-1.2mm	Width	600-1250mm
Tolerance	"+/-0.02mm	Zinc coating	60-275g/m2
Coil ID	508-610MM	Coil Weight	3-8 tons
Technique	Hot rolled, cold rolled	Package	seaworthy package
Certification	ISO 9001-2008,SGS,CE,BV	MOQ	25 TONS (in one 20ft FCL)
Delivery	15-20 days	Monthly Output	10000 tons
Surface treatment:	oiled, passivation or chromium-free passivation, passivation+oiled, chromium-free passivation+oiled, resistant to fingerprints or chromium-free resistant to fingerprints

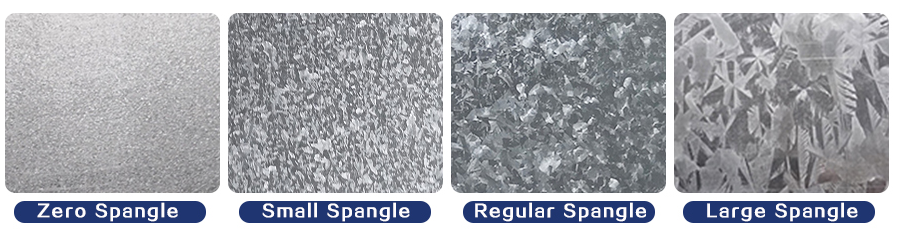

Spangle	regular spangle,minimal spangle, zero spangle,big spangle
Payment	30%T/T in advanced+70% balanced;irrevocable L/C at sight
Remarks	Insurance is all risks and accept the third party test

Mechanical properties of galvanized steel
Usage	Grade	Yield strength(MPa)	Tensile strength(MPa)
Punching galvnaized steel	DC51D+Z	-	270-500
	DC52D+Z	140-300	270-420
	DC53D+Z	140-260	270-380
Structure galvanized steel	S280GD+Z	≥280	≥360
	S350GD+Z	≥350	≥420
	S550GD+Z	≥550	≥560
